Graylog

Installation and configuration guide for Graylog server.

Definition

Graylog is a powerful log management and analysis platform. It receives logs from various sources, stores them, enriches them, and provides a powerful UI to search and analyze these logs in real-time. It integrates with OpenSearch for indexing and MongoDB as its metadata database. For more details, visit Graylog Documentation.

Installation

The official installation guide is available here, but the following are the exact steps used with small adjustments.

Note:

If somthing not clear return to the official site here, and let me know in the comment section.

Step 1: Installing System Dependencies

sudo apt update
sudo apt install apt-transport-https openjdk-11-jre-headless uuid-runtime pwgen dirmngr gnupg wget

Step 2: Installing MongoDB (Graylog’s Database Backend)

sudo apt-get install gnupg curl

curl -fsSL https://www.mongodb.org/static/pgp/server-7.0.asc | \
 sudo gpg -o /usr/share/keyrings/mongodb-server-7.0.gpg \
 --dearmor

echo "deb [ arch=amd64,arm64 signed-by=/usr/share/keyrings/mongodb-server-7.0.gpg ] https://repo.mongodb.org/apt/ubuntu jammy/mongodb-org/7.0 multiverse" | sudo tee /etc/apt/sources.list.d/mongodb-org-7.0.list

sudo apt-get update
sudo apt-get install -y mongodb-org
sudo apt-mark hold mongodb-org

sudo systemctl daemon-reload
sudo systemctl enable mongod.service
sudo systemctl start mongod.service

Step 3: Installing Graylog Server

wget https://packages.graylog2.org/repo/packages/graylog-6.2-repository_latest.deb
sudo dpkg -i graylog-6.2-repository_latest.deb
sudo apt-get update
sudo apt-get install graylog-server

Step 4: Configuring Administrator Access

Create SHA256 password hash:

echo -n "Enter Password: " && head -1 </dev/stdin | tr -d '\n' | sha256sum | cut -d" " -f1

Save the hash output for next step.

Step 5: Core Configuration

Edit Graylog configuration file:

sudo nano /etc/graylog/server/server.conf

Set these parameters:

  • root_password_sha2 = [YOUR_HASH_FROM_STEP_4]
  • password_secret = [RANDOM_STRING]
  • http_bind_address = bonsaii.local:9000
  • elasticsearch_hosts = https://user:pass@bonsaii.local:9200

Replace user:pass with real OpenSearch credentials.

Step 6: SSL Certificate Integration

Set Up Java Trust Store

mkdir /etc/graylog/server/certs
cp -a /usr/lib/jvm/java-11-openjdk-amd64/lib/security/cacerts /etc/graylog/server/certs/cacerts
keytool -importcert -keystore /etc/graylog/server/certs/cacerts -storepass changeit -alias root_ca -file <path/to/ca-certif/root-ca.crf>

Adjust the Java path if necessary.

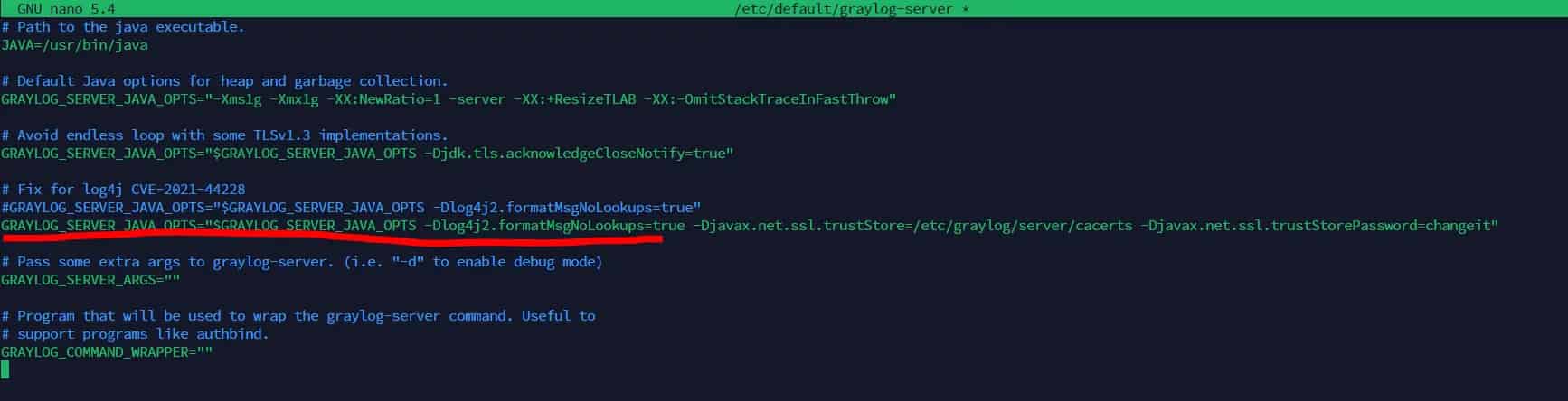

Edit Graylog Server Defaults

nano /etc/default/graylog-server

Add the line:

GRAYLOG_SERVER_JAVA_OPTS="$GRAYLOG_SERVER_JAVA_OPTS -Dlog4j2.formatMsgNoLookups=true -Djavax.net.ssl.trustStore=/etc/graylog/server/certs/cacerts -Djavax.net.ssl.trustStorePassword=changeit"

Architecture

To delete a certificate alias later:

sudo keytool -delete -alias <alias> -keystore /etc/graylog/server/certs/cacerts -storepass changeit

Step 7: Start Graylog Services

sudo systemctl daemon-reload
sudo systemctl enable graylog-server.service
sudo systemctl start graylog-server.service

Troubleshooting

Graylog Won’t Start

sudo journalctl -u graylog-server -f

Certificate Issues

ls -la /etc/graylog/server/certs/

OpenSearch Connection

curl -k https://bonsaii.local:9200

MongoDB Check

sudo systemctl status mongod

Input Configuration

We will now access the Graylog Web Interface to configure the input.
Make sure you have:

  • The Graylog server's IP address
  • The admin password you previously configured

Step-by-Step Input Setup

  1. Navigate to System > Inputs

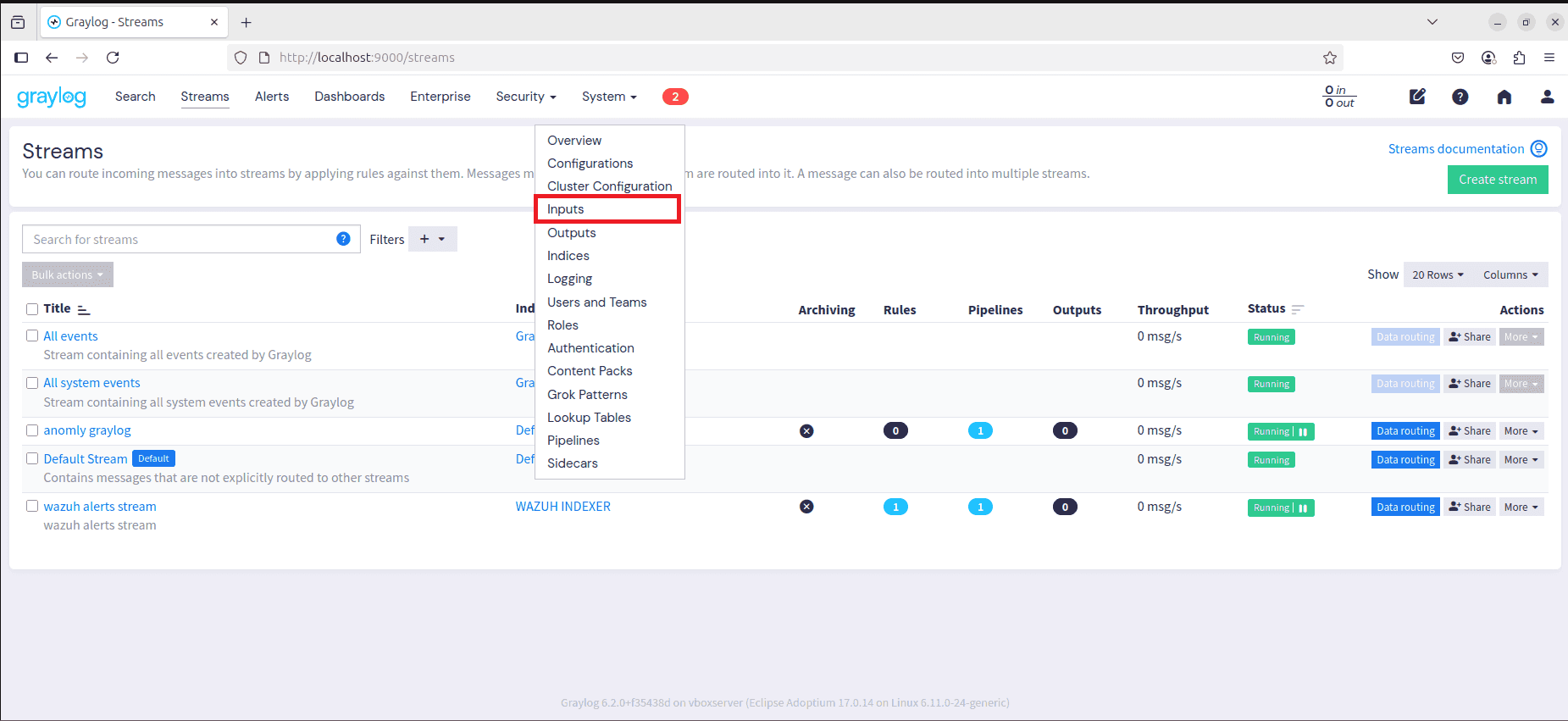

To Input Section

  1. From the dropdown, select Raw/Plaintext TCP

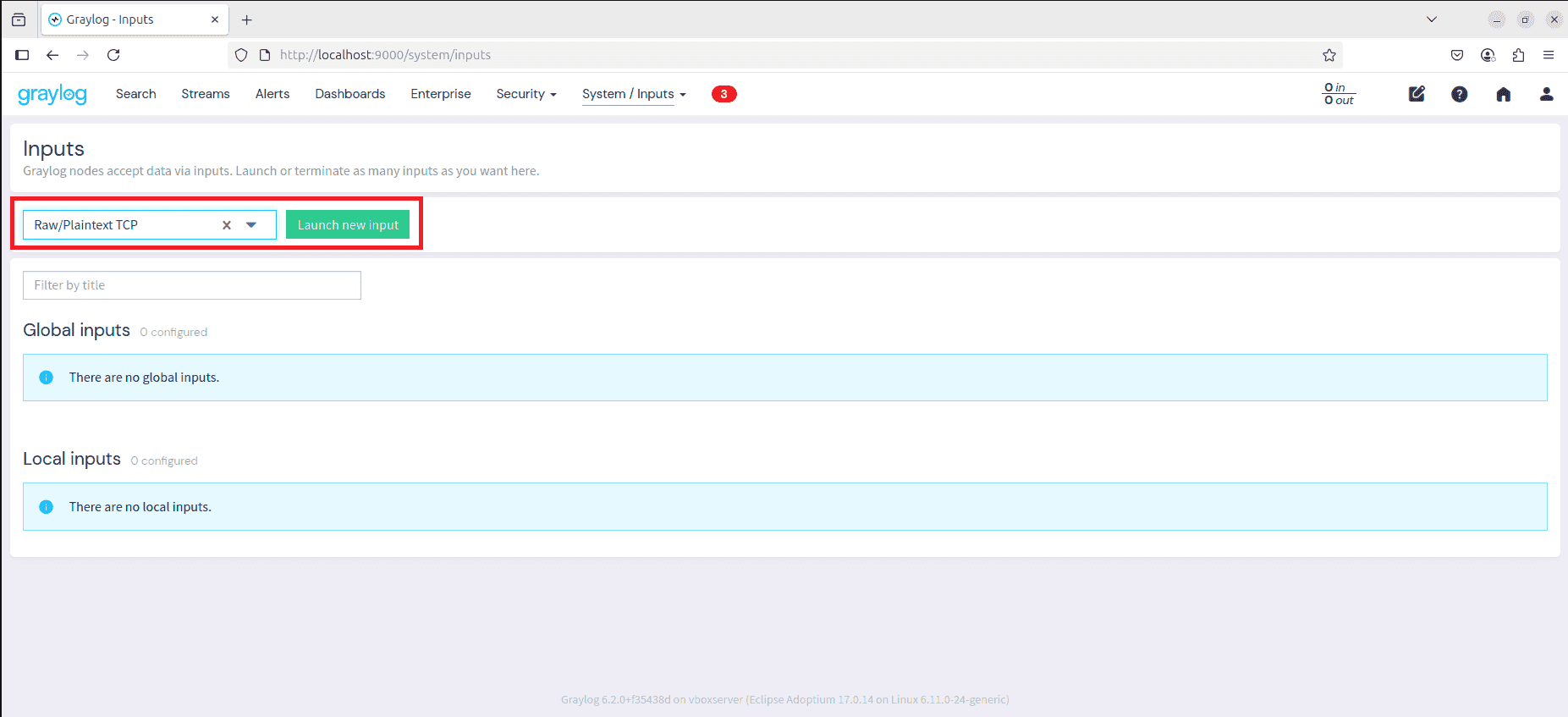

Choose Input Type

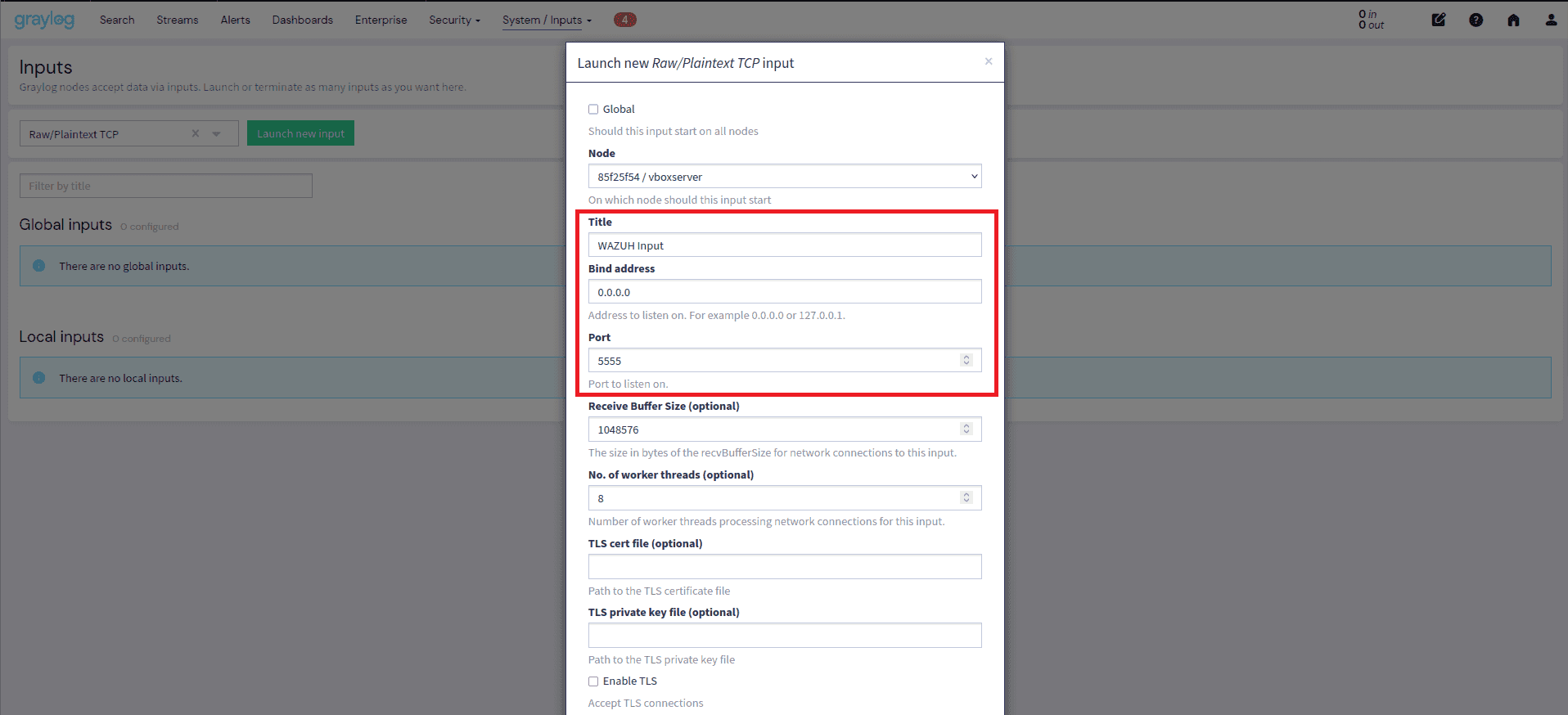

  1. Configure the input with the following fields:
  • Title: A custom name for the input
  • Bind address: The IP address Graylog will listen on (usually 0.0.0.0 or your server's IP)
  • Port number: The port on which Graylog will receive logs
  • TLS/Authentication: Optional based on your setup

Input Configuration

  1. Click Launch Input

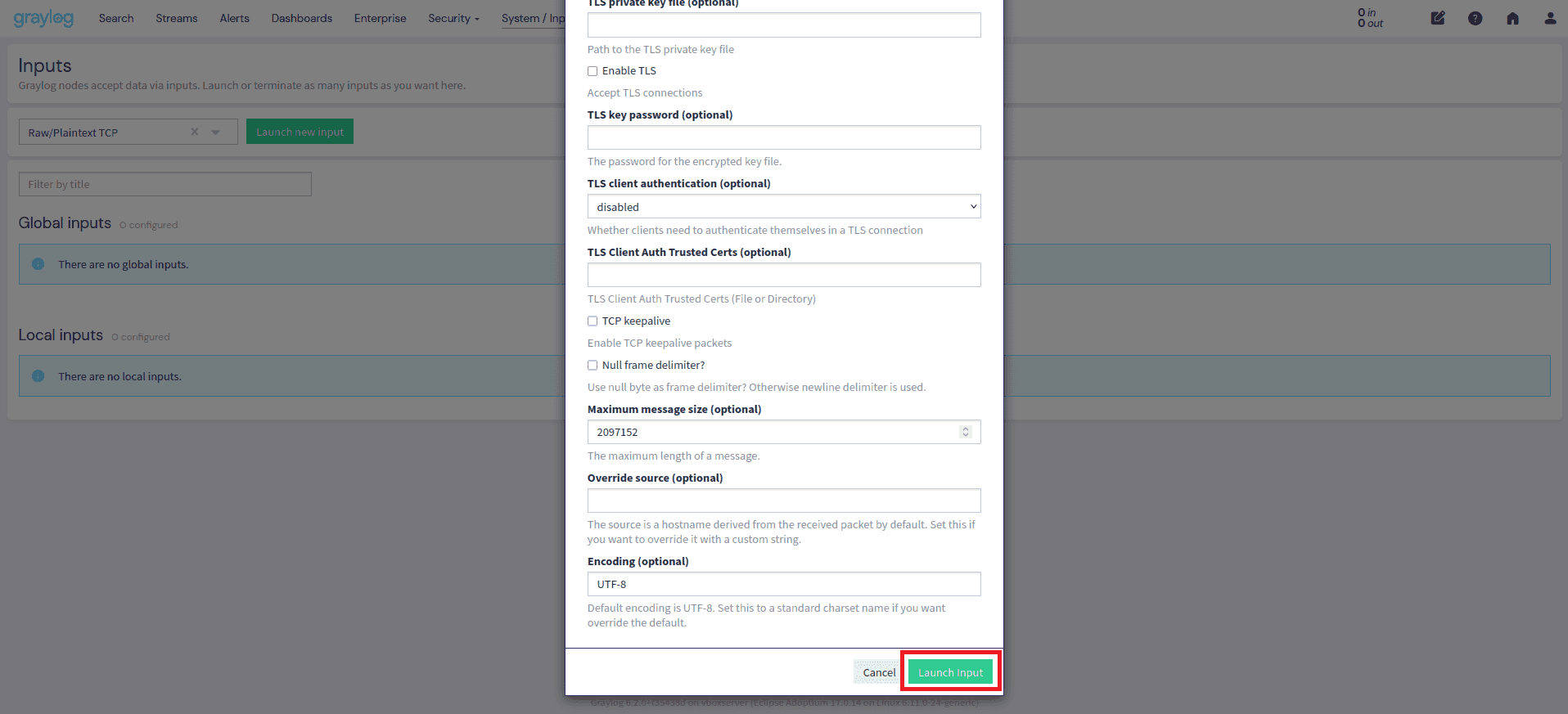

Launch Input

After Launching the Input

Once the input is running, it's ready to receive logs. However, to organize and persist the incoming logs properly, you need to configure a Stream and Index Set.

Note:

Inputs simply listen on a port and collect raw data.
A Stream defines how logs are routed, and an Index defines where those logs are stored.
Graylog will automatically create rotated indices like:
wazuh-alerts_0, wazuh-alerts_1, etc.

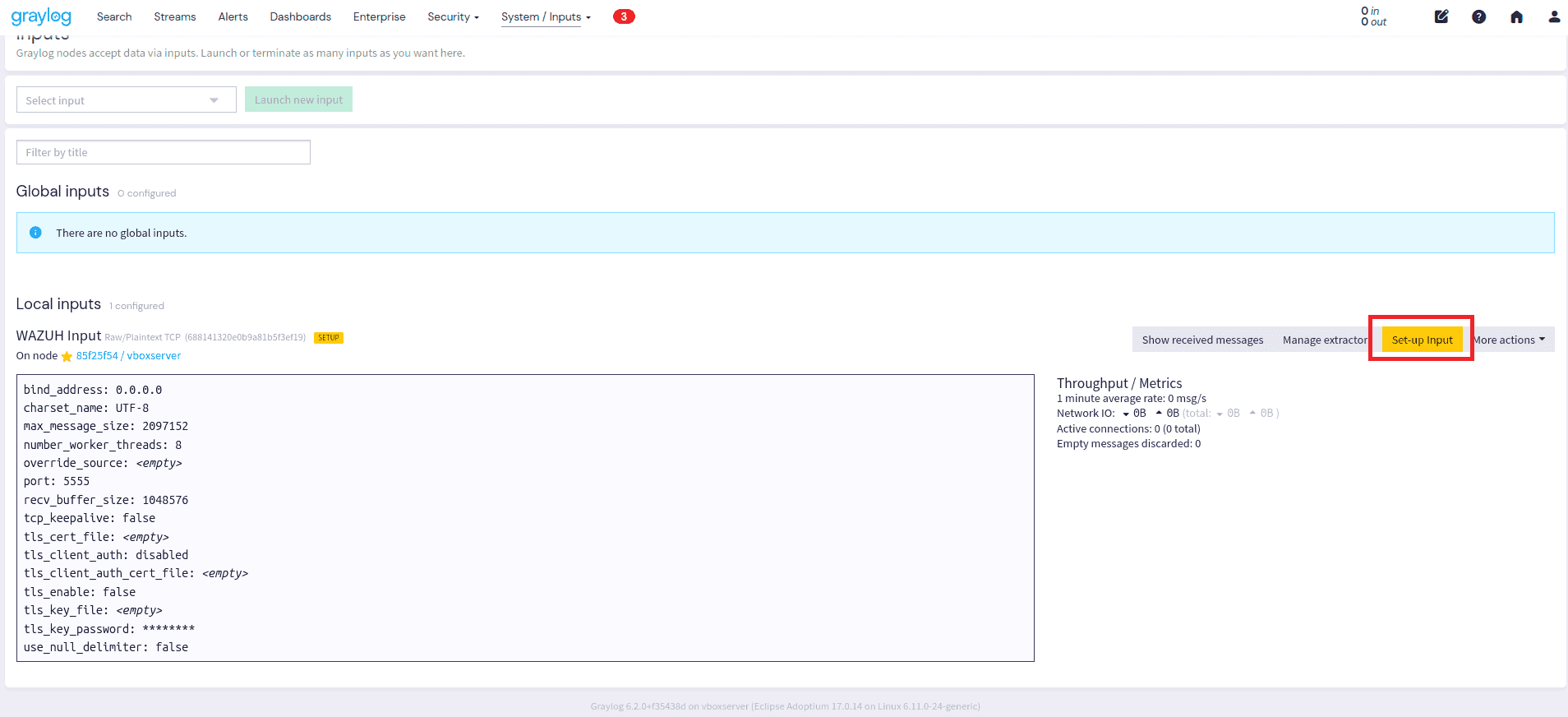

After Launch

Creating a Stream

  1. Click Launch Stream after input creation

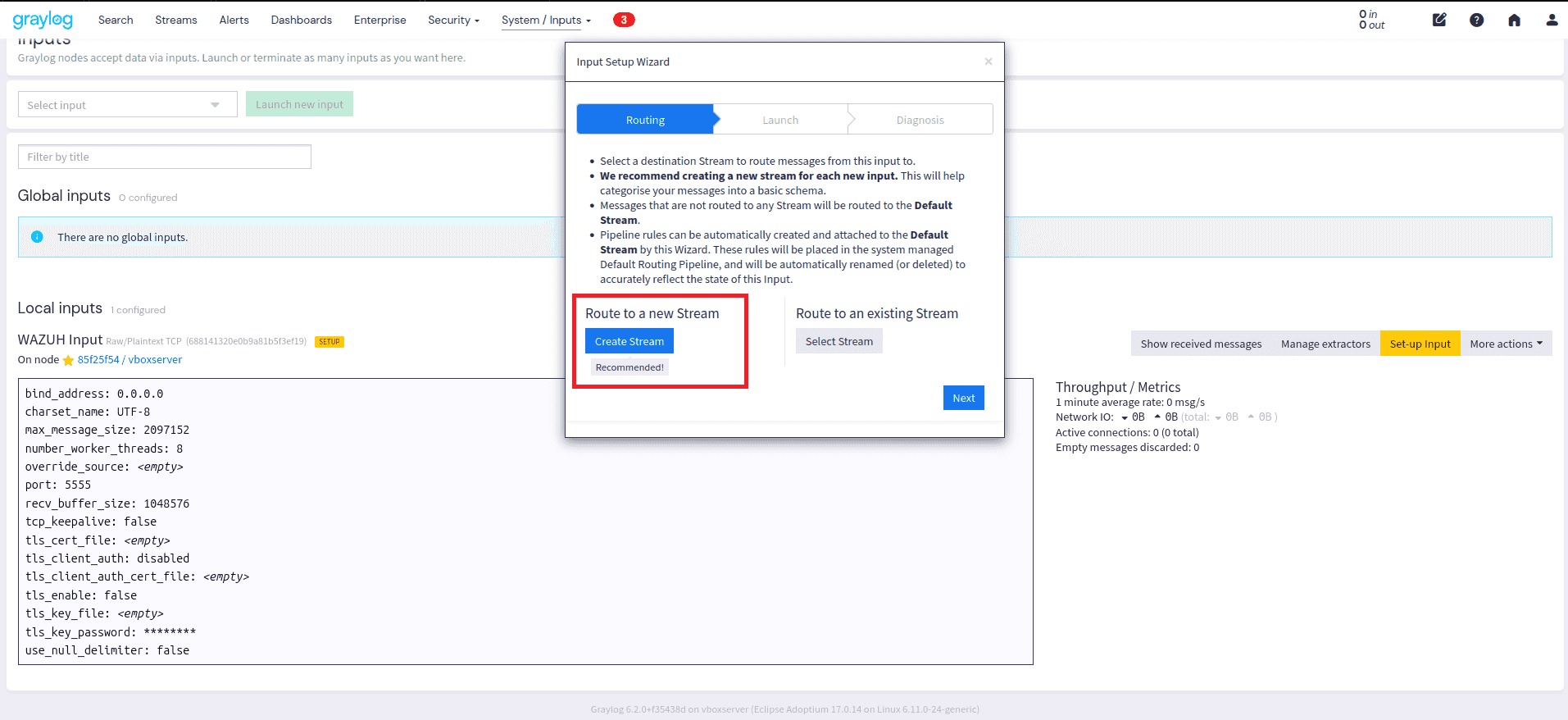

Choose a Stream

  1. Choose the stream and enable the option:
    ✅ Remove matches from 'Default stream'

Note:

There's another method for routing logs:

  • You first create a stream
  • When creating the input, add a static field like input: wazuh
  • Then configure a Pipeline Rule to match that field and forward logs to the stream
    However, using the method above (via the input interface), the stream is auto-linked using the input ID.

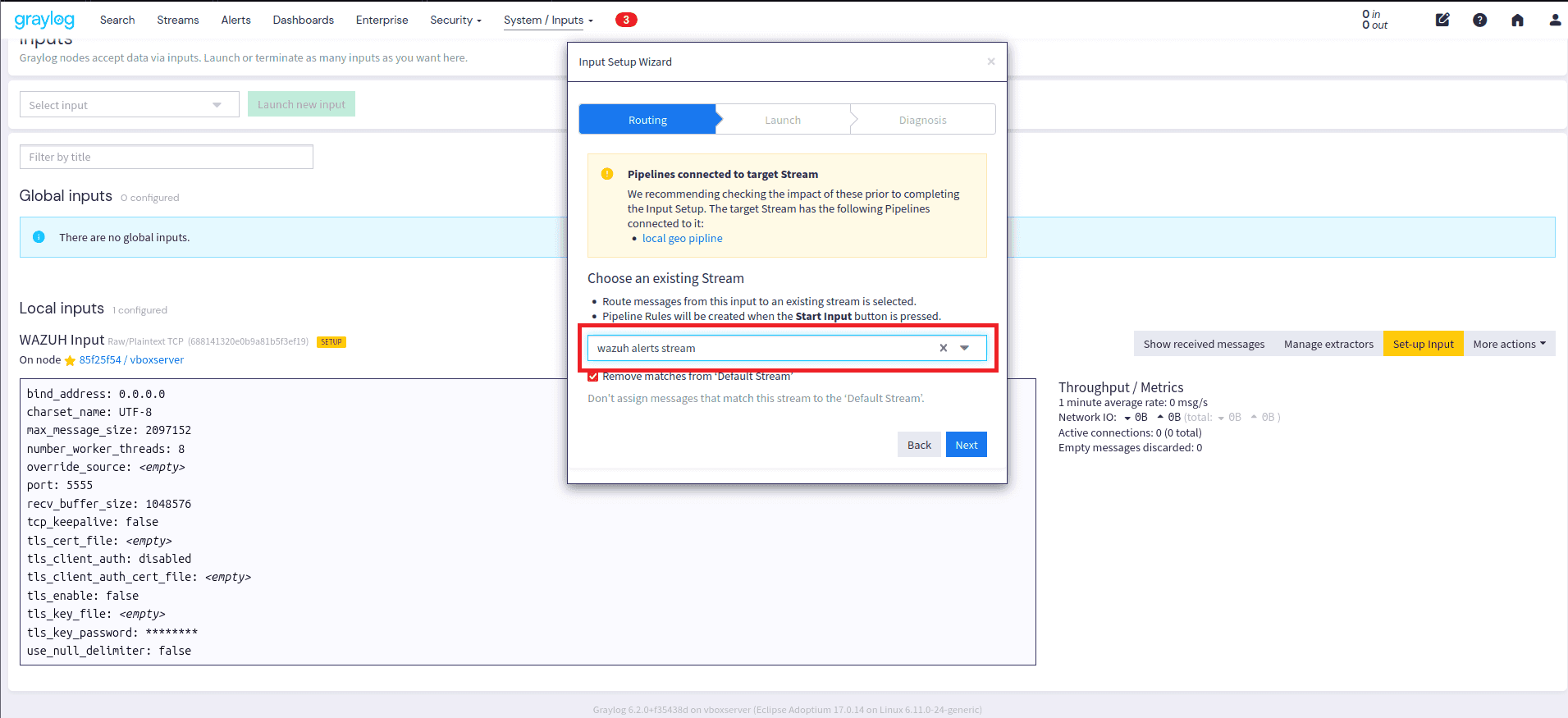

Stream Chosen

Final Step: Start the Input

Click Start Input to activate it and begin receiving logs from your Wazuh manager or any other source.

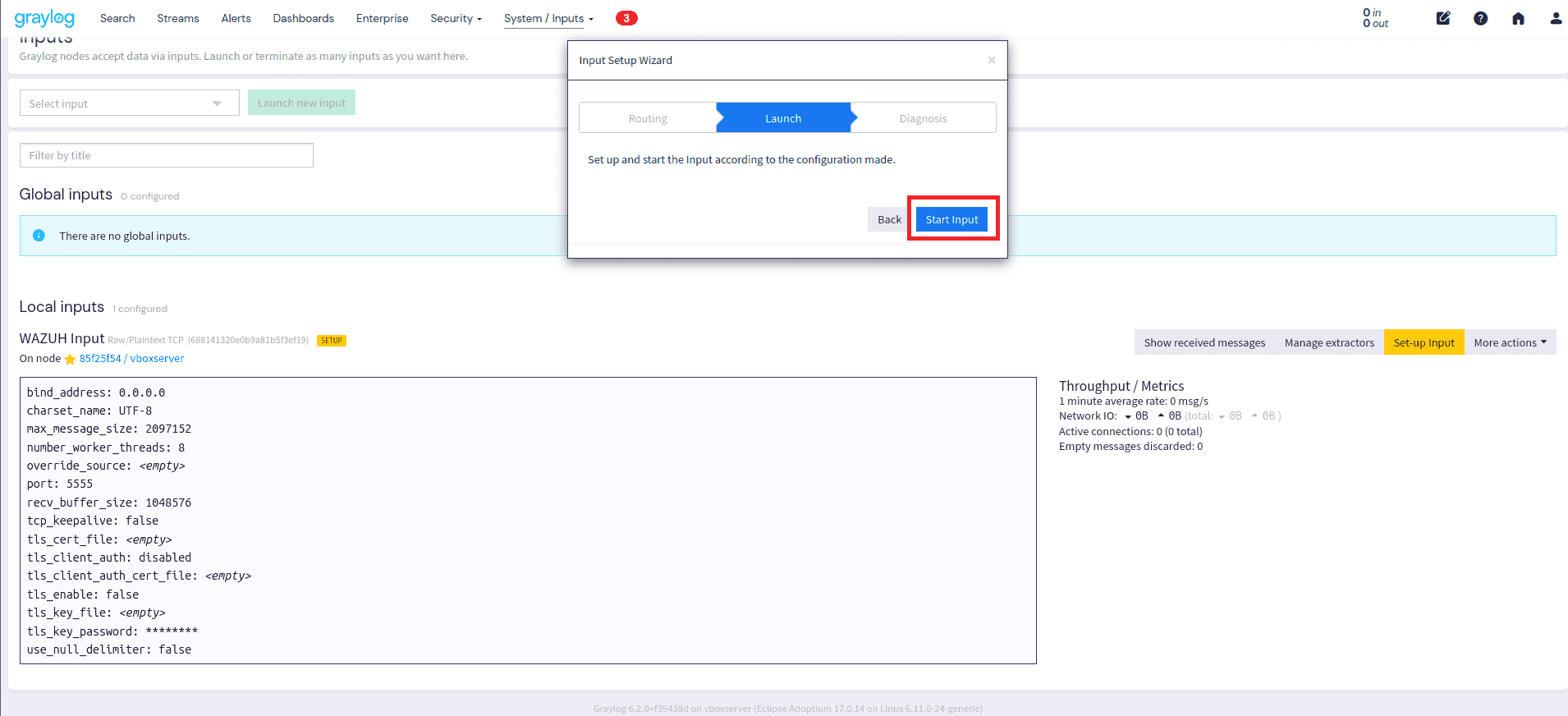

Start Input
